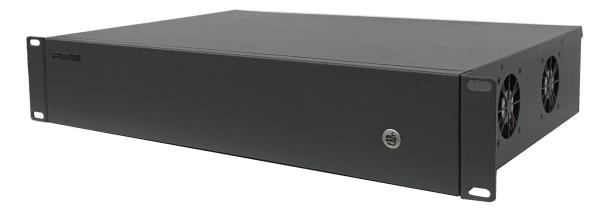

PE50MA HD Analog Video Matrix system , Pearmain full cross point modularized matrix switch, 32ch BNC input, 8ch HDMI otuput or 8ch BNC & 4ch HDMI output
Quick Detail:
● Microprocessor-Based, Full Cross-Point Video Matrix.
● support CVBS, HD TVI, CVI,AHD input, or CVBS, TVI or CVI hybrid input
● Factory Tested Prepackaged System Configuration And Quick-Guide Manual.
● Pelco D, P.
● Powerful Macro Programming
● CE, FCC compliant
Description:
PE50MA HD analog matrix bay can have up to 32ch HD analog video input & 8ch video output, can extend to 64ch input and 16ch output, it is last generation of pearmain modular matrix system.
Specifications:
| Communication Mode |
serial (RS-485),TCP/IP RS422 |
| Display Mode |
numeral duct |
| Baud Rate |
9600 bits/s |
| Connection Mode |
STP |
| Video Isolation degree |
-45dB |
| Channel Bandwidth |
10 MHz |
| Video S/N |
65 dB |
| Differential Phase |
≤1.1° |
| Differential Gain |
≤0.6% |
| Insertion Gain |
≤0.1db |
| Synchronous Nonlinear Distortion |
1% |
| Brightness Nonlinear Distortion |
1.50% |
| Inter-modulation Distortion |
0.50% |
| Amplitude Frequency Characteristic |
1.5db |
| Waveform Distortion in a Short Time |
3.50% |
| Cluster Frequency Delay Characteristics |
6ns |
| Brightness/Color Time Delay Offset |
2.5ns |
| Brightness/Color Time Delay Gain |
8% |
| Video Input Signal |
1Vp-p /75Ω |
| Video Output Signal |
1Vp-p /75Ω |
| Audio Input Signal |
1Vp-p |
| Audio Output Signal |
1Vp-p |
| The Maximum Inputs (can be controlled) |
64 |
| The Maximum Receiver/drivers (can be controlled) |
255 |
| The Maximum allocated keyboard |
16 |
| Memory Retention in Power-off |
10 years |
| Operable Keyboards number |
main keyboard with 35 keys and, sub keyboard with 23 keys |
| temperature |
-10℃～ +35℃ |
| Working Voltage |
AC 220V ±10% 50/60 Hz for matrix, DC 9V ±10% for sub keyboard. |
| Matrix Weight |
5.8kg |
| Matrix Power |
30 W |
| Matrix Size |
430(W)×90(H)×313(L)mm |
| Installation Mode |
desktop or 19” standard rack |
Applications:
For the surveillance system where there are all analog cameras, the application focus on real time surveillance.
The application including Transportation control center, casino, city surveillance, anti-terrorist, harbor,etc. large scale surveillance system.
